OSI Layer

  • It describes the seven layers that computer system uses to communicate over a network.
  • Each layer interacts with the layer directly above and below it and encapsulates the data transmitting in a structured manner.
  • Problems can be isolated to a specific layer.
OSI 7 Layer

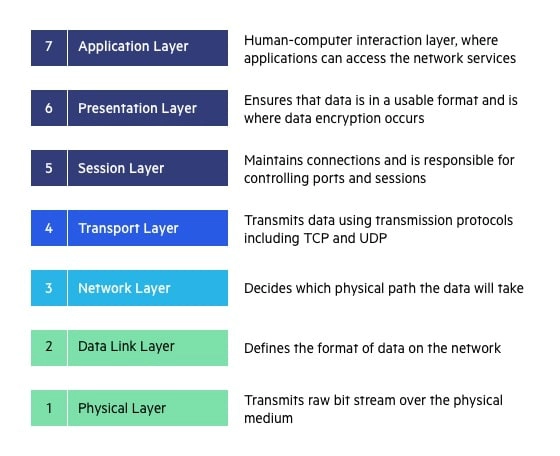

osi layer - TCP Handbook

1. Application Layer(Layer 7)

  • It provides as proxy between the user application and the network services.
  • Function includes: Resources sharing, remote file access, network management.
  • Protocols: HTTP( web browsing), FTP( file transfers), SMTP(email services), DNS( resolving domain names to IP addresses).

2. Presentation Layer(Layer 6)

  • It is also known as the syntax layer.
  • Responsible for translating data between the application layer and the network format.
  • It handles data formatting, encryption compression between different systems.
  • It includes encryption protocols to ensure data security during transmission and compression protocols to reduce the amount of data for efficient transmission.
  • Protocols includes: SSL(Secure Socket Layer), TLS(Transport Layer Security), Compression Protocols, Data Formatting and Encoding Protocols, etc.

3. Session Layer(Layer 5)

  • Manages and controls the connection between computers.
  • Establishes and maintains and terminates connections ensuring the data exchanges occurs in an organized manner.
  • Ensures data flow in the correct way between application.
  • Session checkpointing and recovery which allows to resume communication in case of failure.
  • Properly ends a session when communication is complete.
  • Protocols includes: NetBIOS: (communication between applications on a LAN), RPC(Remote Procedure Call): allows a program to execute a procedure on another computer.

4. Transport Layer( Layer 4)

  • The transport layer ensures the end-to-end delivery of messages between applications.
  • It receives the data from the application layer, segments it and adds source and destination ort numbers before sending the data to the network layer.
  • It manages flow control, error control and retransmission if needed.
  • At the receiver's end, it reassembles the data, reads the port number and delivers it to the appropriate application.
  • Many applications use default port numbers, such as port 80 for web servers.
  • Common transport layer protocol include TCP, UDP, NetBIOS and PPTP.
  • Services provided by Transport Layer: Connection-Oriented Service, Connectionless Service.

5. Network Layer(Layer 3)

  • It is responsible for transmitting data between hosts across different network.
  • It handles packet routing, selecting the shortest available path for efficient data transfer.
  • It adds the sender and receiver’s IP address to the packet header, ensuring proper delivery.
  • Networking devices like routers and switches implement the network layer.
  • The two key functions includes:
  • Routing: determines the best path for data transmission.
  • Logical Addressing: assigns unique IP addresses to devices for identification across networks.
  • The data link layer ensures node-to-node delivery of messages and error-free data transfer over the physical layer.
  • It uses MAC addresses to transmit packets to the correct host.
  • Data units at this layer are called frames and common devices include switches and bridges.
  • The data link layer is divided into two sublayers:
  • Logical Link Control(Logical Link Control): It manages error detection and flow control.
  • Media Access Control(MAC): It handles access to the physical transmission medium.
  • The data link layer divides packets from the network layer into frames based on the NIC’s frame size.
  • It also encapsulates the sender and receiver's MAC addresses in the header.
  • The receiver’s MAC address is obtained using ARP, which asks “Who has this IP?” The destination host replies with its MAC address.
  • Functions of the data link layer:
  • Framing: Defines frame boundaries using special bit patterns.
  • Physical Addressing: Adds sender/receiver MAC address in the frame header.
  • Error Control: Regulates data transmission to prevent data loss or corruption.
  • Access Control: Determines which device can use the shared communication channel.

7. Physical Layer(Layer 1)

  • It is the lower layer of the OSI model, responsible for the physical connection between devices.
  • It transmits individual bits as signals over the medium
  • When receiving data, it converts signals into 0s and 1s and sends them to the Data Link Layer for reassembly.
  • Common device at this layer includes hubs, repeaters, modems and cables.
  • Functions of the Physical Layer:
  • Bit Synchronization: Provides a clock to synchronize bits between sender and receiver.
  • Bit Rate Control: Defines the transmission rate(bit per second).
  • Physical Topologies: Specifies the arrangement of devices in the network(e.g. bus, star, mesh topologies).
  • Transmission Mode: Defines the flow of data between devices (simplex, half-duplex, full-duplex).
